Information

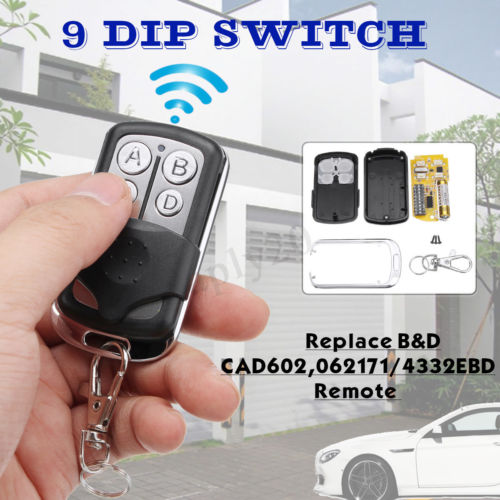

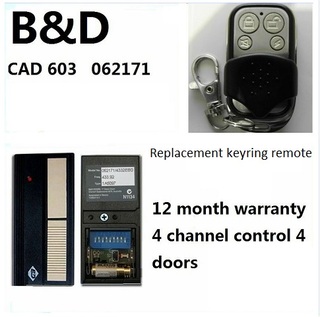

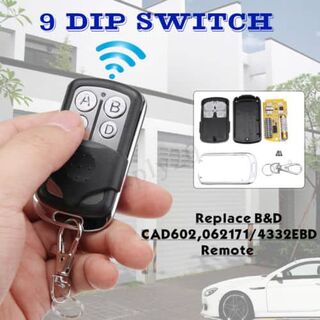

4332EBD/4332RBD 062171 BND 62171 Garage Remote
Suitable for the following openers:
Replacement Keyring Remote Has 9 dipswitches Same As Old Remote
B&D Controll-A-Door 4 (CAD4)
B&D Controll-A-Door 5 (CAD5)
B&D Controll-A-Door P (CADP)
B&D Controll-A-Door R (CADR)
***not suitable for 27mhz old Remote with Ribbed button on left***
Coding Instructions
How to store the transmitter code: The opener can only operate from transmitters that have been programmed into its receiver. The receiver needs to learn the codes of any transmitter that will be used with the opener. Up to fourteen (14) codes can be stored in the receiver's memory.
a. Go To The Garage Door Motor In Garage And Locate Learn Or Code Set Button
Control a door 4 =square green button on back motor panel
Cad-p diamond=orange square button on back panel
Roller door motors=code set button on side of motor
b. Press the CODE SET button and release. The CODE SET LED will illuminate to indicate the opener is in Code Learn mode. If a valid code is not stored within 15 seconds the opener will exit Code Learn.
c. Press the transmitter button (one of four) that you want to control the door. The CODE SET LED will begin to flash.
d. Press the same transmitter button again. The CODE SET LED will illuminate for one second and then go out.
e. The transmitter is now coded to operate the door - press the button to test. How to erase programmed codes: If the CODE SET button is pressed and held for 6 seconds the CODE SET LED will blink rapidly for one second to indicate that all programmed codes have been erased.
